- Tunnel
Tokyo Metro Hanzomon Line, Kiyosumi section
| Orderer | Teito Rapid Transit Authority |
|---|---|
| Completion | 2002 |
| Structure and scale | Slurry type MF shield method, outer longitudinal diameter: φ7.2m; outer lateral diameter: φ16.2m; finishing internal diameter:φ6.5m; tunnel length: 376m |
| Location | Tokyo Metropolis |
| Application | Railway tunnel |

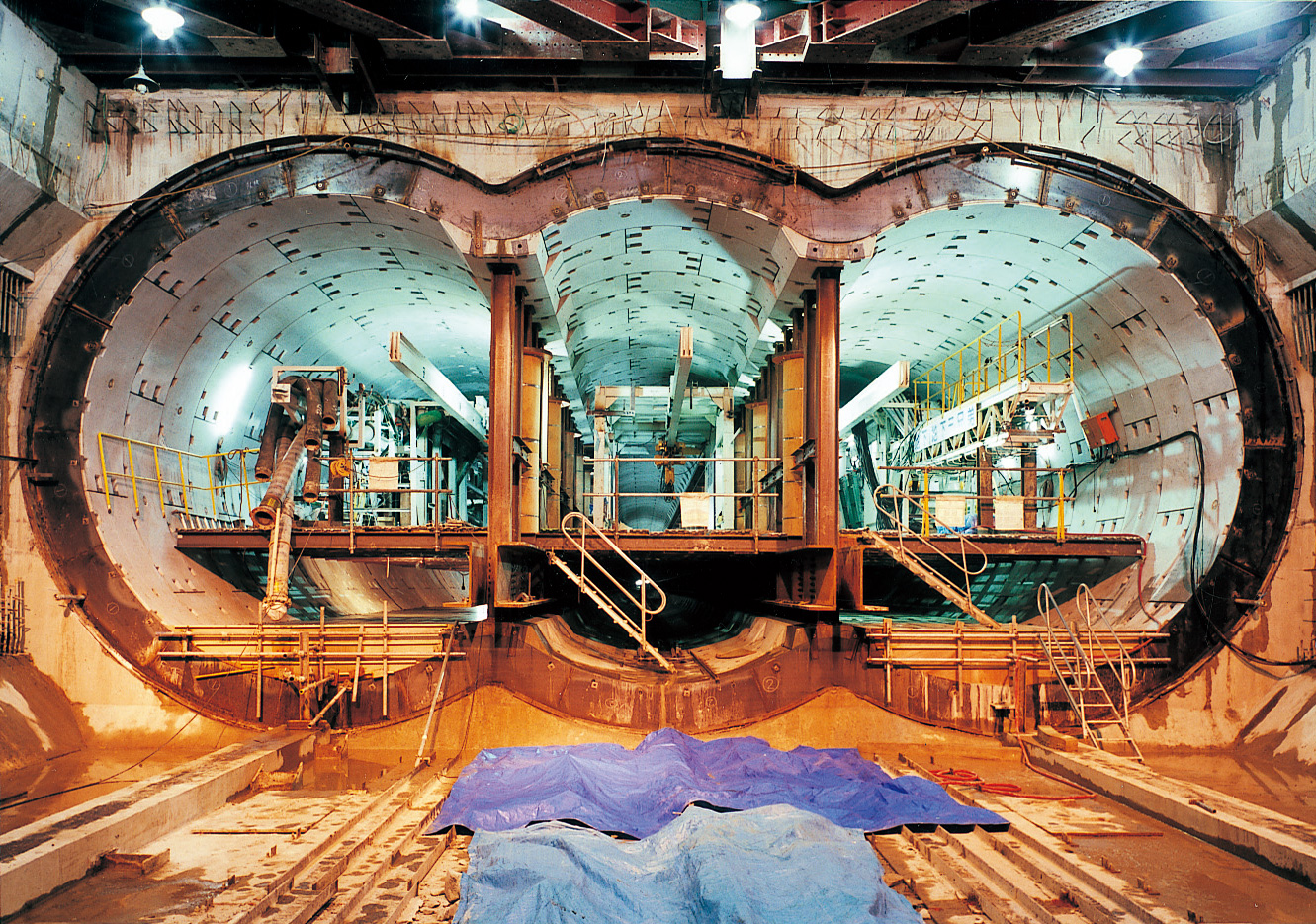

It was constructed with a side-advancing, center-swing type 3-tandem shield machine at Kiyosumi-shirakawa Station on the Tokyo Metro Hanzomon Line and the storage track there. It was the first time a 3-tandem shield was used to tunnel through soft ground, and the adoption of the RC segment also attracted attention.
